EV Charge + charging station in Riga Latvia.
Ev-charging-station-Riga-Latvia-Ev-Charge-Plus

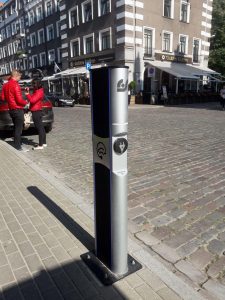

The CityCharge V2 EV charging station is well-suited for any public location. Therefore, the design will fit city centers, shopping malls, restaurants, hotels and other public parking areas. We only use the highest quality materials. Due to powder coated aluminum parts, this product will last. Top quality electronics with integrated climate control ensures the highest reliability. Even in the worst weather conditions. As a result, the operational temperature can go as low as -30°C or the highest of +50°C. In this project, we installed our CityCharge V2 station outside of a coffee shop.

City Charge V2 Technical Specifications

  • Socket type: 2 x Mode 3—IEC 62196 (Type 2)
  • Input power: 3 phase, 400 V AC: PE,N, L1, L2, L3/50Hz
  • Max current: 2 x 32 A / 64 A
  • Max power: 2 x 22 kW / 44 kW
  • Output power: 2 x 3-phase 400 V/AC 32 A (2×22 kW)
  • Energy meter: 3 Phase digital with backlight
  • Operational temperature: -30 °C to +50 °C
  • Degree of protection: IP54
  • Impact protection: IK10
  • Stainless housing: Aluminum
  • UV resistant: Yes
  • Certificate: CE
  • Communication: WiFi – Elios.cloud – OCPP
  • User interface: LED back-light screen, RFID user access control, LED status indication
  • Weight: 35 kg
  • Depth x width x height: 150 x 350 x 1370 mm
